WCT-1201-MR
Counter Manual Reset
WCT-1XXX-MR

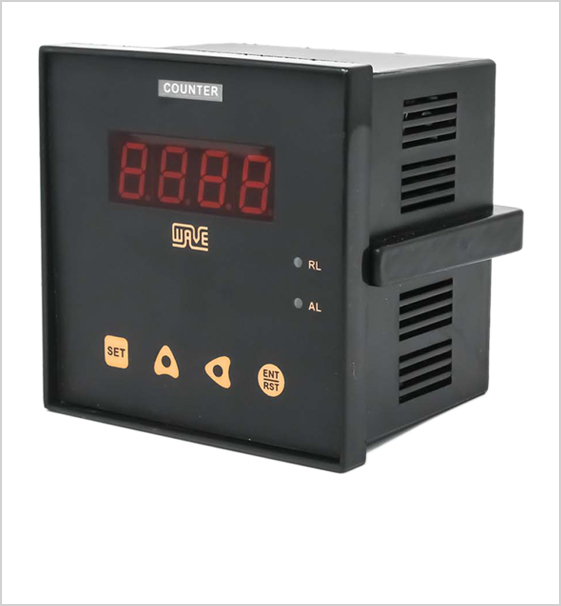

WCT-1201-MR
Size in mm:
- 96 width
- 96 height
- 65 dimensions

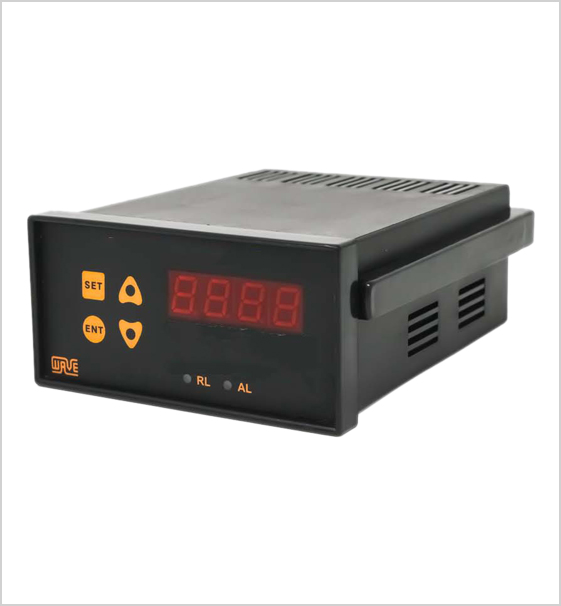

WCT-1001-MR
Size in mm:
- 96 width
- 48 height
- 110 dimensions

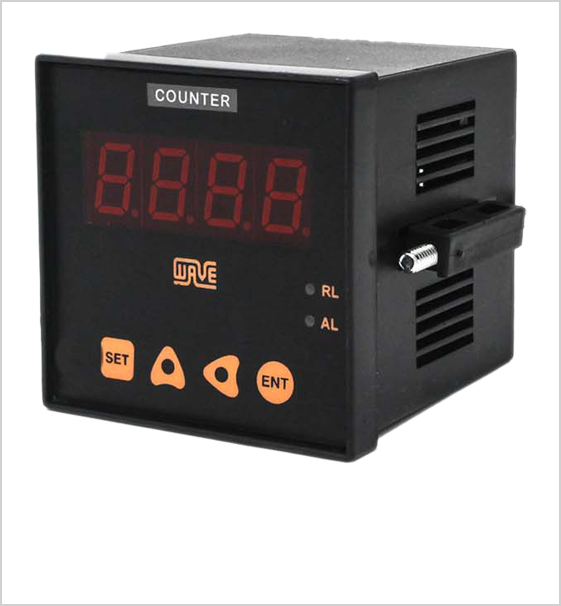

WCT-1101-MR
Size in mm:
- 72 width
- 72 height
- 80 dimensions
WCT-1301-MR
Size in mm:
- 48 width
- 48 height
- 85 dimensions
Description
Specification
Diagram
| Controller Name | Model Number and Type | Digital counter manual reset mode | ||||
|---|---|---|---|---|---|---|
| SIZE | | Dimension (HxWxD) mm | Panel CutOut | | | 96x96, 72x72, 48x48, 96x48 | 92x92, 68x68, 44x44, 92x44 | |
| DISPLAY | | Upper | Lower | | | 7 segment, 6 digit RED LED display | 7 segment, 4 digit RED LED display(optional) | |
| INPUT | | Input Signal | Set points setting method | | | Proximity switch (PNP /NPN), Micro switch, 230v AC pulse, Encoder | Push switch | |
| OUTPUT | | Control Output | Output Rating | | | Relay Output | 1C/O, 2A, 230V AC | |
