WTCK-48-LED

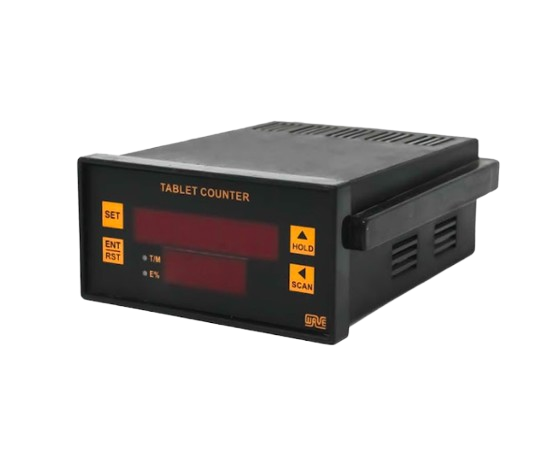

Tablet Counter LED
Description
Specification
Diagram
| Controller Name | Model Number and Type | WTCK-96-LED,WTCK-48-LED | ||||
|---|---|---|---|---|---|---|
| SIZE | | Dimension (HxWxD) mm | Panel Cutout (mm) | | | 96x96x65, 48x96x110 | 92x92, 42x92 | |
| DISPLAY | | Upper | Lower | | | 7 segment, 7 digit RED LED display | 7 segment, 4 digit RED LED display | |
| INPUT | | Input Signal | | | Proximity switch (PNP /NPN) or micro switch or 230v or AC pulse or Encoder | | ||
| OUTPUT | | Control Output | Output Rating | | | Relay Output(optional) | 1C/O , 2A, 230V AC | |
